!! TuneECU.com è ora TuneECU.net !!
Nessun aggiornamento di questa pagina più.
Aggiornamenti solo sulle pagine francese, inglese e tedesco.
Usare TuneECU SOLTANTO per le moto elencate nella lista di compatibilità.

 Vers.:Android

Systema

Attività

Collegamenti

Scaricamenti

Glossario

Map_Databases

Guida_rapida

News

Doc Ver:2.5 Mar. 2013
Android Doc Ver:1.0 Jul. 2014

Ultimo Aggiornamento ottobre-09-2022

Installazione



Requisiti di sistema:

  • Per la versione di Android:
    - Host-capable (OTG) Smartphone or tablet with Android system, Android version 4.4 at least,
      dual Core 1.2Ghz mini.
    - USB OBD2 KKL FTDI cable (It can be the same cable, used for the Windows version)
    - Host Cable / host adapter (also OTG-cable or OTG-adapter called.
    - Optional - Bluetooth adapter ELM327, V 1.4 or 1.5.
    .
  • Per la Aprilia ECU's, altri componenti sono tenuti, segui questo link.
  • Per la KTM ECU's, altri componenti sono tenuti, segui questo link.
  • Per la Benelli ECU's, altri componenti sono tenuti, segui questo link.
  • Per la Ducati, Moto Guzzi & Moto Morini ECU's, altri componenti sono tenuti, segui questo link.

    Restrictions on the use of the serial TuneBoy-cable:
    The serial TuneBoy-cable can also be used with TuneECU, but is a USB-Serial-Adapter necessary,
    which has a FTDI-chip-set. Good example is here the Digitus DA-70156 USB-Serial-Adapter.


Installazione TuneECU per Android:

QUI come file PDF da scaricare.

Guida alla registrazione

QUI come file PDF da scaricare.




Installazione TuneECU per Windows

La versione e il supporto per Windows non sono più disponibili.

Requisiti di sistema:

  • Per la versione di Windows:
    Computer
    :  PC o netbook, Windows (XP, Vista, Windows 7/8/8.1 & 10 (32 o 64 bit)
    eccetto
    Windows RT & Windows Phones
    .
    Utilizzare TuneECU con Windows 7, 8 o 10, fondamentalmente con diritti di amministratore.
  • USB 2.0 o superiore
  • display 1024x576
  • .NET Framework da 2.0 e verso l'alto (necessario solo per XP).

Cavo per il collegamento con l'unità di controllo motore (ECU): USB / Cavo OBD-KKL con set
di chip FTDI (
altri cavi non funzionano) e CDM (D2XX) di 2.06.00 driver o superiore.
Note: for Windows 8 from driver vers. 2.08.28 or higher, select here the driver package for manual installation.
From driver version 2_08_30 also works with WIN 8 & 8.1, the automatic installation via
Windows driver update.)
For Windows 10, the drivers are automatically installed via Windows Update.
.
For Android systems no driver are required.

Installazione di .NET Framework 2.0 (solo per XP)
Scaricare ed installare il programma Dotnetfx.exe e seguire le istruzioni. download dal sito Microsoft.
Installazione dei driver (solo per Windows):
(Se il cavo viene fornito con un CD di driver, si raccomanda di NON installarli)
Consigliato FTDI CDM (D2XX) Driver  qui.
FTDI offers the driver even with installation routine. Not use for Windows 8 & 8.1 select here the driver
package for manual installation.
From driver version 2_08_30, works with WIN 8 & 8.1, the automatic installation via Windows driver update.
For Windows 10, the drivers are automatically installed via Windows Update.
Win7 e Vista gli utenti, si prega di essere installato prima il driver.
Attenzione!!! Rimuovere prima dell'installazione in ogni caso la connessione Internet.
Collegare il cavo in una porta USB.
Sul PC verrà aperta una finestra "Aggiungi nuovo hardware" per l'installazione del driver USB <-> Seriale
Selezionare No per la connessione a Windows Update.
Fare clic su Avanti.

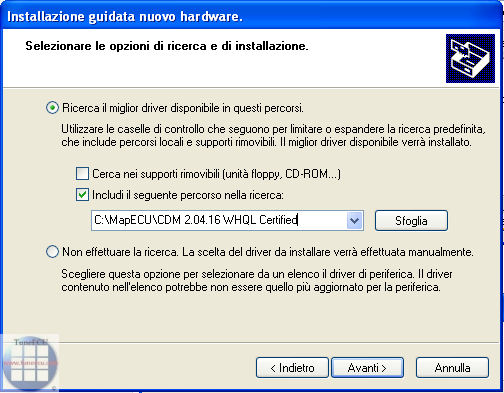

Scegliere "Installa da un elenco ..." e selezionare la posizione del driver nella finestra successiva.

Fig.2.

Fare clic su "Avanti"
Attendere il termine della installazione dei driver ...
Fare clic su Fine.
Fate lo stesso per i driver USB Serial Port.

Driver Installation of  USB/RS232 converter, required if your computer has  no serial
interface (RS232) has. Only for Walbro Benelli models required for the connect with the serial cable.

Use the drivers that came with the converter.

Drivers limitation for the USB-Tuneboy-cable (Windows system):
The USB TuneBoy cable works only with the ancient FTDI driver from TuneBoy's own site.
For  WIN8/8.1/10 unfortunately, the tuneboy driver is to install only with a trick.
For Windows 8/8.1, See here.
With Windows 10 is similar.
The problem is the enforced driver signing in Windows 8, Windows 8.1 & Windows 10.
The hardware id of TuneBoy cable is different vs. a generic/TuneECU FTDI cable.
So even though both cables have same chip, the TuneBoy cable needs the matching
driver from the TuneBoy site.

Restrictions on the use of the serial TuneBoy-cable:
The serial TuneBoy-cable can also be used with TuneECU, but is a USB-Serial-Adapter necessary,
which has a FTDI-chip-set. Good example is here the Digitus DA-70156 USB-Serial-Adapter.

Problems with the driver installation ?
For example, Windows reports: can not find driver software for this device
Please read this post from www.triumphrat net.
Another source for help is the FTDI-support.
If you have any problems with the installation of the FTDI driver, please use the support of FTDI
under http://www.ftdichip.com/Support/Documents/InstallGuides.htm, there are support documents,
the selection of documents must correspond Your used operating system.

Installazione del software TuneECU (solo per Windows):
Copiare il programma TuneECU (TuneECU.exe e TuneLibrary.dll) in una cartella di vostra scelta,
es C: \ TuneECU.
I file di mappa (. Hex) necessari per la riprogrammazione sono disponibili in rete. Vedere al riguardo
la pagina dei link.


Tutte le attenzioni del caso sono state prese nella creazione di questa pagina,
tuttavia l'autore non garantisce la completezza e l'accuratezza delle informazioni riportate.

*** FINE ***
