Extra accessories required for Aprilia:
Cable:

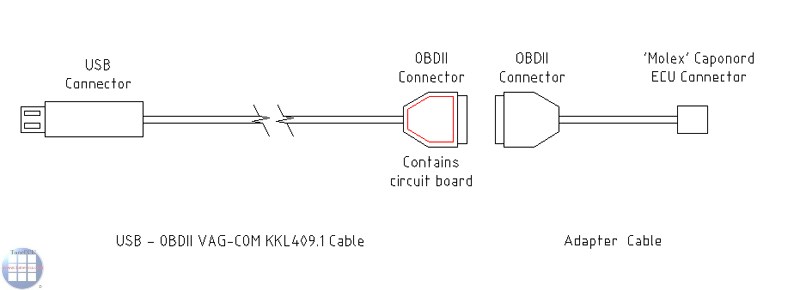

To connect TuneECU with the Aprilia ECU a custom-built adaptor cable

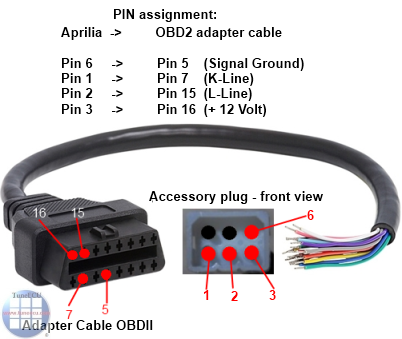

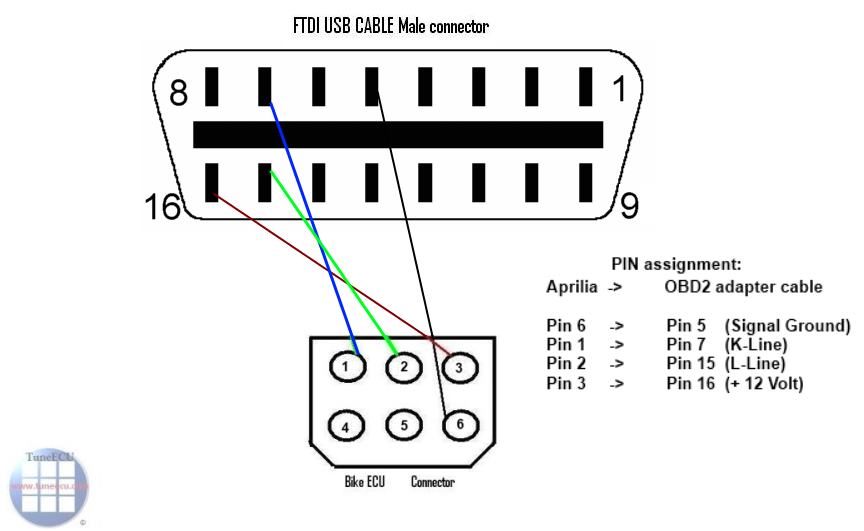

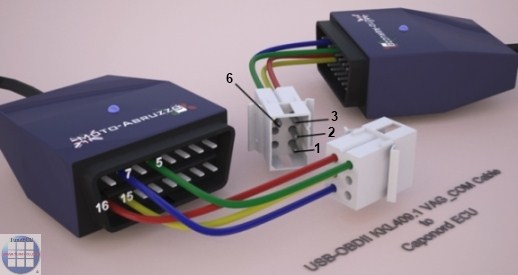

is required Pin assignment Fig.1, Fig.5 and Fig.6

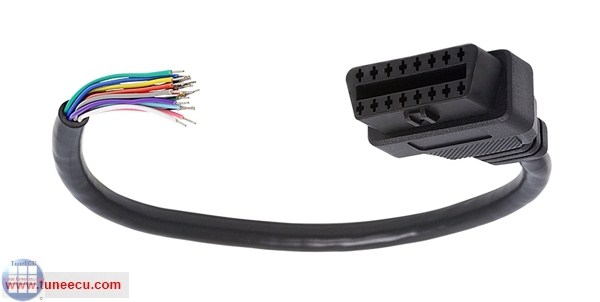

To make up such a cable,the following components are required: (i) a diagnostic OBDII cable
with a 16-pin socket on the one side and flying leads on the other (Fig. 2). This cable is commercially

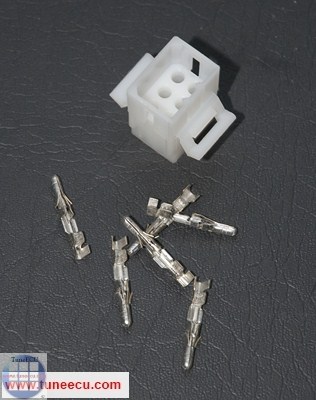

available as an accessory in many OBD-motorsport shops (ii) a 6-pin connector (Fig.3).
***Fig.1***
***Fig.6***
Thanks "moto-abruzzo" from the Aprilia-Forum
***Fig.2***
Aprilia ECU Male connector
Company Tyco Electronics / USA. Website click here
Housing: Manufacturer Part No: 770090-1 - Newark.com Part No: 50F2670
Connector: Manufacturer Part No:770145-1 - Newark.com Part No: 16H5735
Company Farnell Electronics / UK, Website click here
6W 0.093" plug housing (Molex part number 03-09-2061) - Farnell order code 143-209
Order Code: 143209
Manufacturer: Molex
Manufacturer Part No: 03-09-2061
Crimp pins (Molex part number 02-09-2118) - Farnell order code 977-3800
Order Code: 9773800
Manufacturer: Molex
Manufacturer Part No: 02-09-2118
Source in UK for FTDI cable and/or Aprillia-adapter : Lonelec UK
Source in Italia for FTDI cable and/or Aprillia-adapter : ECU VONIX
***Fig.3***
Fig.4
***Fig.5***
Who
has disconnections when running engine, which can possibly help the Tip
of "moto-abruzzo" from the Aprilia forum. Link the cable
shield
with the ground pin of the OBD connector.
See the
following picture.
Thanks "moto-abruzzo" from the Aprilia-Forum
!!
Important note !!
No Motobike Manufactor
have had involvement in this product.
The use of a manufactures name and / or model designation to describe
the motorcycles on this site does not imply that the manufacturer
endorses
the use of this application.
Supplement 02.07.2020:
The 6-pin adapter is only required for the Aprilia Futura or Caponord 1000 models, for the 1200 you need a 3 pin adapter.
