TuneECU Acessórios extra necessário para K?M:
Cable:

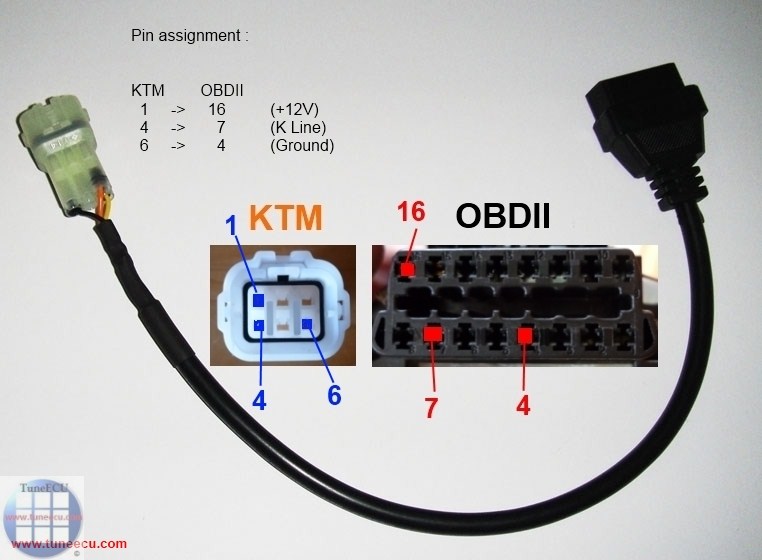

To connect TuneECU with the K?M ECU a custom-built adaptor cable
is required (Fig

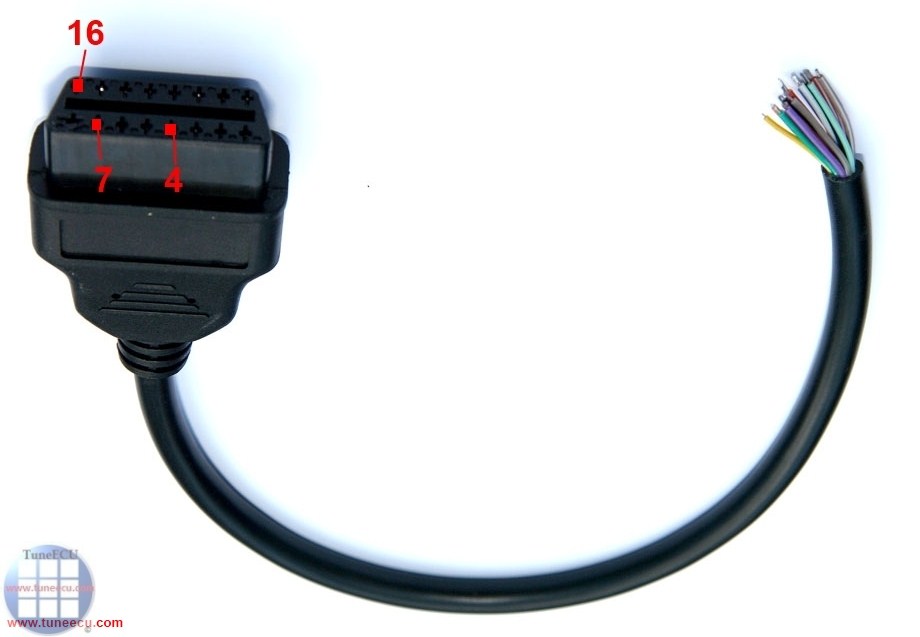

1)To make up such a cable,the following components are required: (i) a diagnostic OBDII cable
with a 16-pin socket on the one side and flying leads on the other (Fig. 2). This cable is commercially

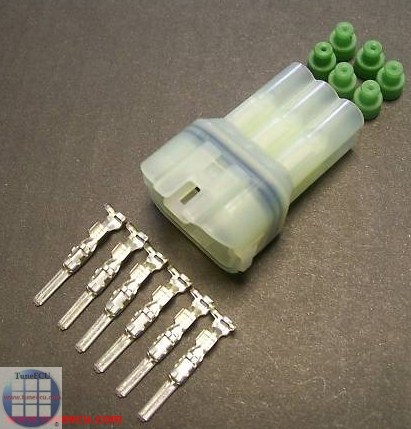

available as an accessory in many OBD-motorsport shops (ii) a 6-pin connector (Fig.3).
***Fig.1***
***Fig.2***
* 2006-2009 Yamaha YZF-R6 Secondary Injector harness (main harness side);
* 2006 Yamaha YZF-R6 Injector harness (sub-harness side);
* Honda CBR600RR Ignition wiring harness;
* See Corsa Technic Motorsport Shop: http://www.corsa-technic.com/
* Item Title: "6-Way Plug Kit (B6AP) Sumitomo type"
* Price: US$2.65 plus Shipping.
* or Tuning Center Otto Leirer in 7442 Lockenhaus Austria, here is the direct Link .
* Price € 3,50 plus Shipping
* There is also a ready-configured cable, here's the Link .
Another source is the company X-MAS Motorcycle Electrics in Vienna
Item No. V-21330 (multi-connector 2.2 mm 6-pin) price at the time (March.2011) € 3.90,
shipping costs please contact X-MAS Motorcycle . Many thanks to Lars for this information.
OBDII individual components
Another source for a TUNE ECU CABLE KIT for the K?M engines, get e.g. here: http://www.cjdesignsllc.com
And here another source in UK for a TUNE ECU CABLE KIT for the K?M engines:
http://www.zenoverland.com/bikebits/ktm_ecu_cable.html
Yet another source in UK for FTDI cable and/or K?M-adapter : Lonelec UK
Yet another source in Italia for FTDI cable and/or K?M-adapter : ECU VONIX
***Fig.3***
Many thanks to Alain for the pictures.
A
link to be compatible adapter 1190/1290

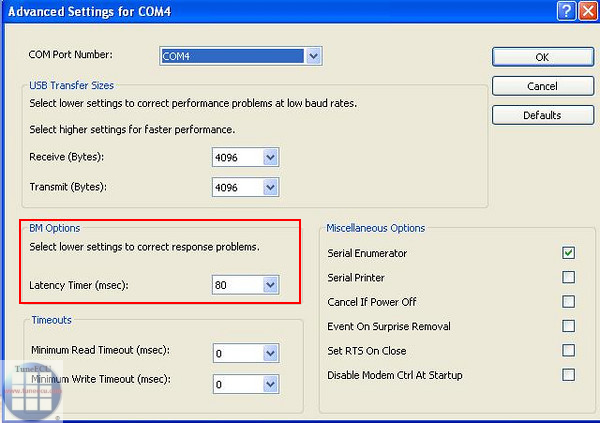

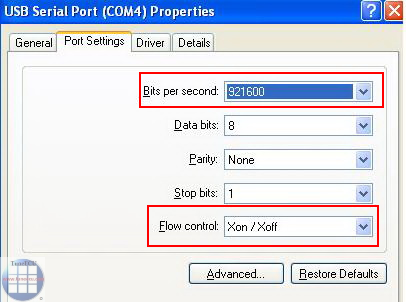

An improvement can be obtained, if you change the parameters for the virtual COM-port.
The following settings are only one example, which have helped many users.
It is possible these settings will not help all users, however; then some other parameters must be changed.
The following settings are made available coutesy of "Tuning Center Otto Leirer" from Austria
Once again a big thanks to Otto.
Another Tip, that can possibly
help comes from "moto-abruzzo" from the Aprilia forum.
Link the
cable shield with the ground pin of the OBD connector.
See the following picture.
Note: the picture shows the
connection on pin 5
for Aprilia, K?M uses
pin 4 as ground.
Thanks "moto-abruzzo" from the Aprilia-Forum
Another tip from "K?Mguy" from the K?M forum, Thanks K?Mguy
To
avoid disconnection issues check and fix the following:

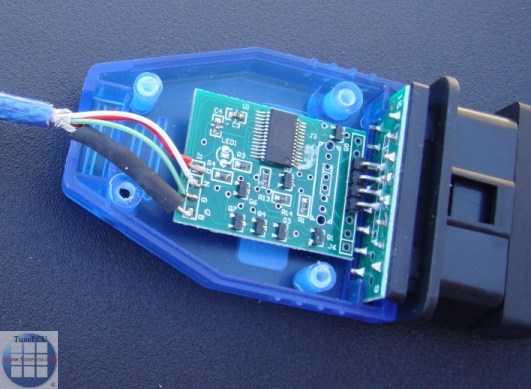

Make sure the shield of the USB cable is fixed to the negative of the
cable.
See the wire and shield together in the heat shrink in the following
picture.
on with some heatshrink around it.

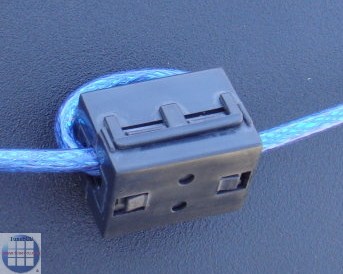

He also
fitted a ferrite choke on the cable as you see here:
On his
bike Tuneecu disconnected as soon as he started the engine, these 2
mods fixed the issue
and now it stays on no problem.
!!
